AtoVproject - 16n (16 fader CV - Controller) Grey
AtoVproject - 16n (AtoVproject Rework) ALU /Grey version
16 faders under your hands which is perfect for live performance.
This faderbank lets you control all the cv controllable parameters of your modules from a central point, without going through the bush of cables in your system.
---
The 16n AtoVproject Rework is a controller sending CV, I2C, MIDI jack, USB MIDI (compatible PC, Mac, iPad etc...), making it the absolute ultimate controller for any of your hardware and software all in one!

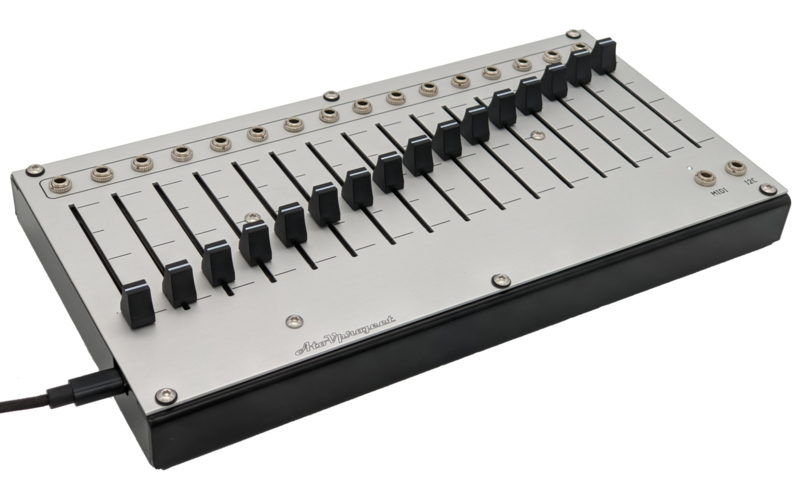

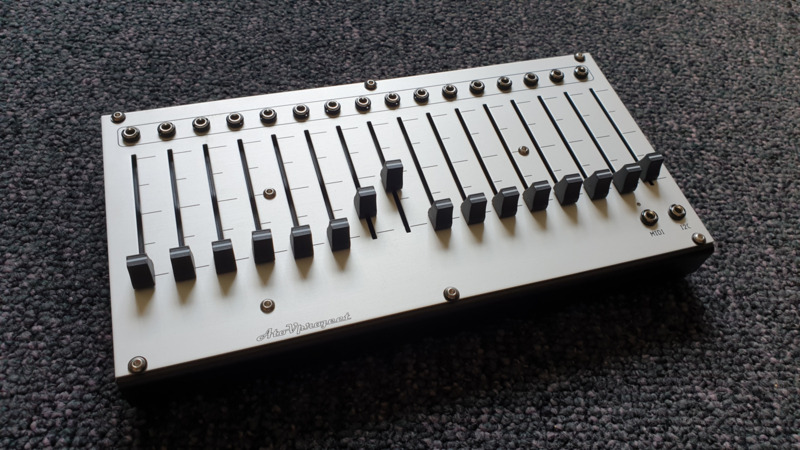

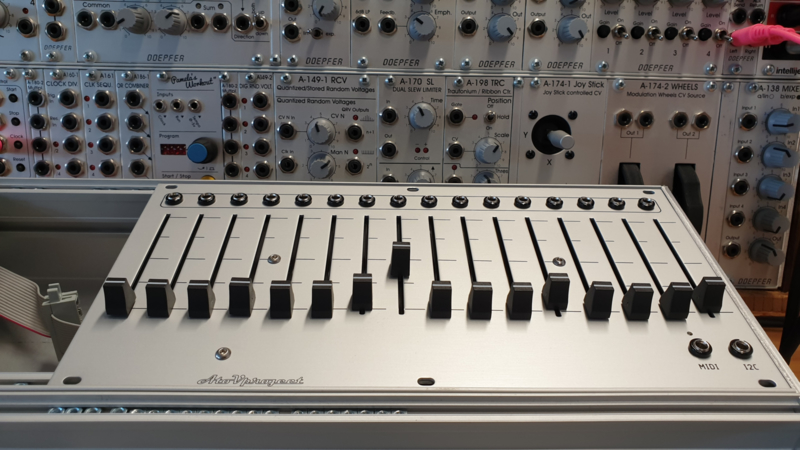

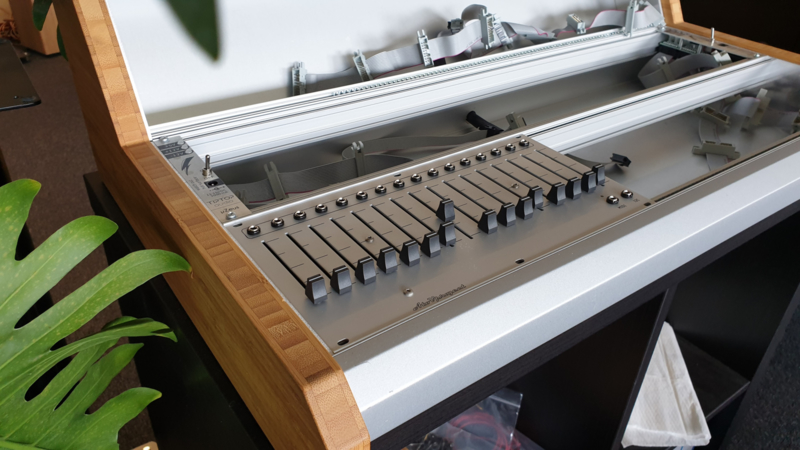

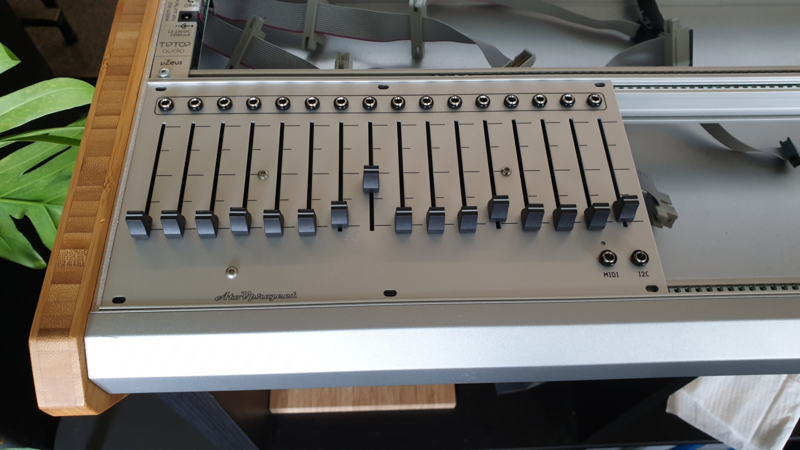

Even better this controller can either be used as a Eurorack module or as a standalone unit using the beautiful aluminum enclosure.
The 16n AtoVproject Rework is aimed at solving a problem very specific to modular synthesis. As a patch is getting more and more complex a forest of cables has grown over your system before you know it. This module allows you to take the control from the modular into a very ergonomic controller that integrates perfectly into a modern studio.
This unit features :
16 high high-end Alps faders
Eurorack compatible (50hp) and standalone enclosure (for use in or out of the rack)

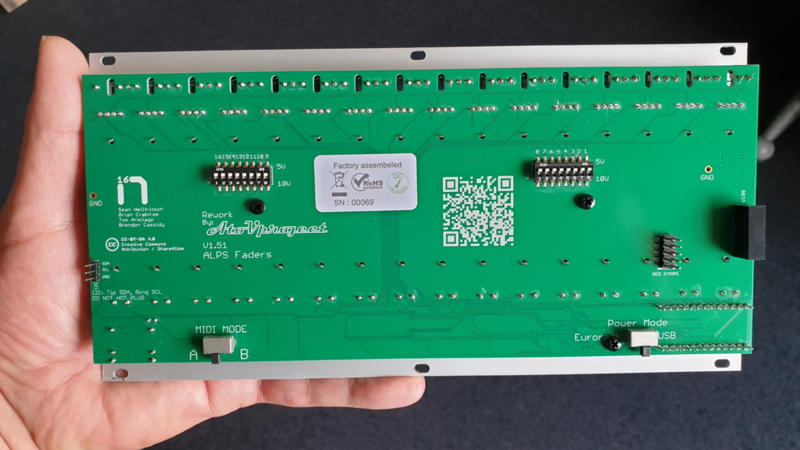

Selectable 0-5V or 0-10V CV output range (independent setting for each fader)
High stability power conditioning for high stability analog outputs
Soft MIDI thru. MIDI data sent to the 16n through USB is echoed to the MIDI jack (Since firmware v2.1.0)
Utility connector on the back of the unit to simplify the use of i2c with modules like the ER301
This version of the 16n Faderbank ships with:
AtoVproject 16n Rework Eurorack module
Enclosure for standalone use (Alumunium Powder coated)
USB cable (High quality 1.5m braided and shielded)
MIDI din to Jack adapter (90° angled, Type A)
Eurorack Power Cable
The 16n AtoVproject rework is a complete redesign of the original open source (CC-BY-SA) project 16n faderbank. This project was originated by Brian Crabtree, Sean Hellfritsch, Tom Armitage, Brendon Cassidy. As wished by the original designers the 16n AtoVproject rework is also open source and uses the same CC-BY-SA licence.
Specs:
Height: 3U
width: 50HP
Depth (eurorack module): 17mm
power: (+12V=42mA, -12V=0mA)
