Doepfer A-100PMS12 Single Monster Case 12 HE PSU3
Doepfer A-100PMS12 Single Monster Case 12 HE PSU3
A-100PMS12

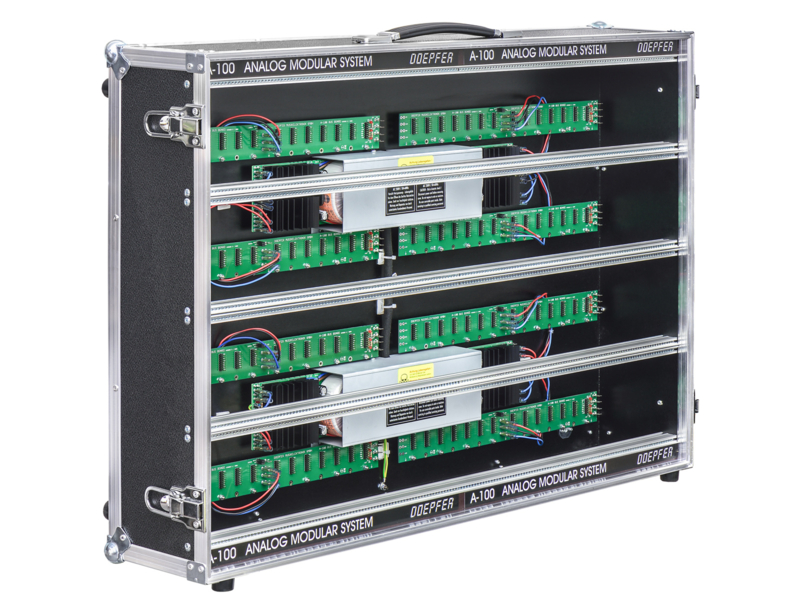

Single version of the 12U/168HP A-100 monster case
outside dimensions (with front cover, closed state): ~ 90 (length) x 62 (height) x 23 (depth) cm
weight of the single case (incl. bus boards, power supplies, with front cover, without modules): ~ 20 kg
outside dimensions of the single case (without front cover): ~ 90 (length) x 62 (height) x 18 (depth) cm
weight of the single case (incl. bus boards, power supplies, without front cover, without modules): ~ 16 kg
weight of the front cover: ~ 4 kg
available 19" width and height: 12 U x 168 HP
Quantity of bus boards: 8
Maximum Output Current:
with four built-in A-100PSU2 (until about end of 2015): +12V/4800mA, -12V/4800mA
with four built-in A-100PSU3 (since about early 2016): +12V/8000 mA, -12V/4800mA, +5V/16000mA
Assignment of the power supplies to the bus boards:
A-100PSU #1: bus board pair top left
A-100PSU #2: bus board pair top right
A-100PSU #3: bus board pair bottom left
A-100PSU #4: bus board pair bottom right
Each power supply A-100PSU3 delivers max. +12V/2000 mA, -12V/1200mA, +5V/4000mA
Each power supply A-100PSU2 delivers max. +12V/1200 mA, -12V/1200mA
inside usable depth for A-100 modules: approx. 70 mm in the power supply area (bottom right), resp. approx. 100 mm in the remaining area (measured from inner side of the front panel until end of the pc board of the module)
position of the mains inlet: center of the rear panel
More pictures (cases in closed state, final version with 4 power supplies and wiring, examples with A-100 modules and so on) will follow soon.
A-100PMS12: custom made product, about 8 weeks delivery time + time required for shipping
